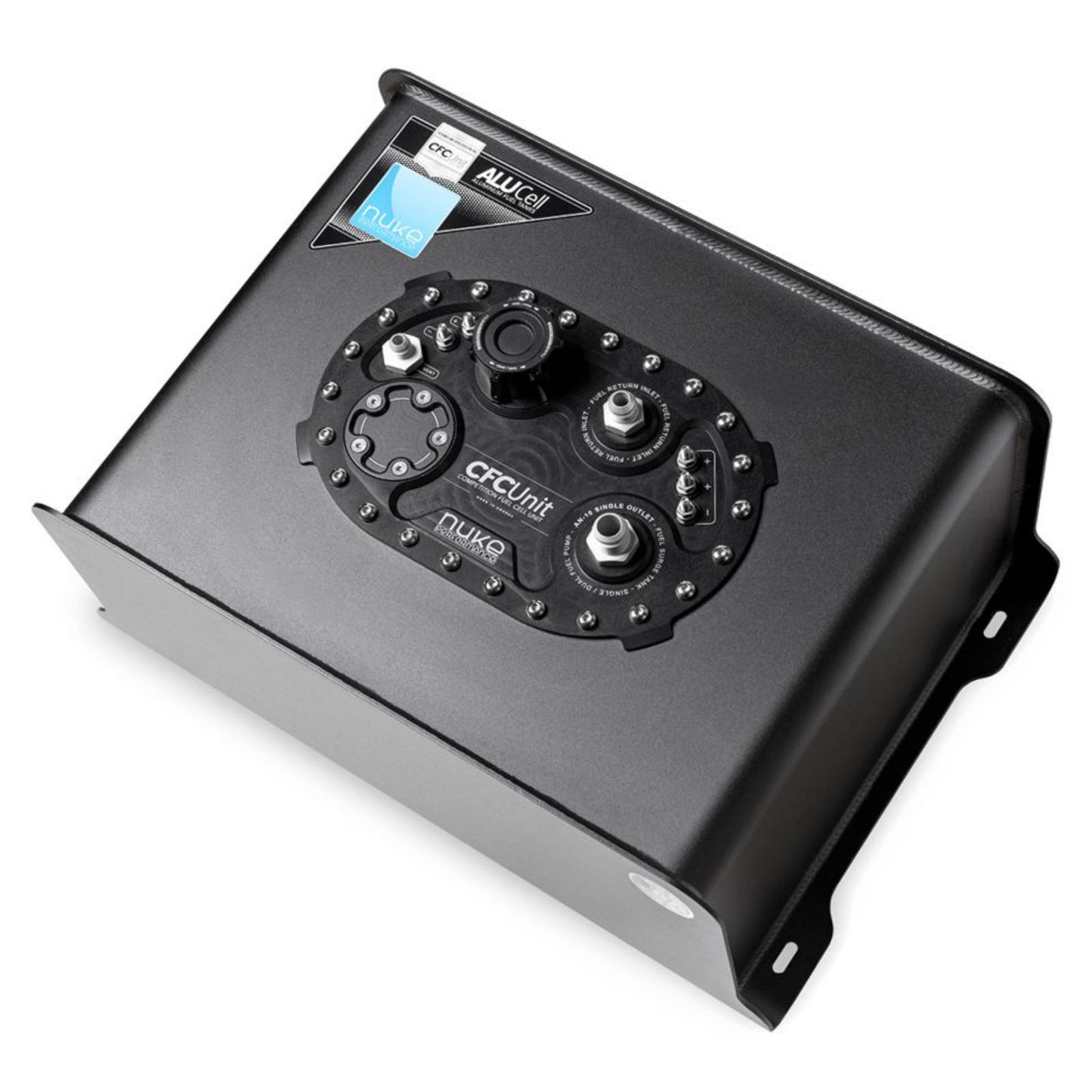

Aluminium Fuel Cell / AluCell 60 Liter with integrated surge tank | Nuke Performance

Technical information:

• CNC manufactured from aluminum alloy 6063
• Stainless steel bolts for long-lasting function and appearance

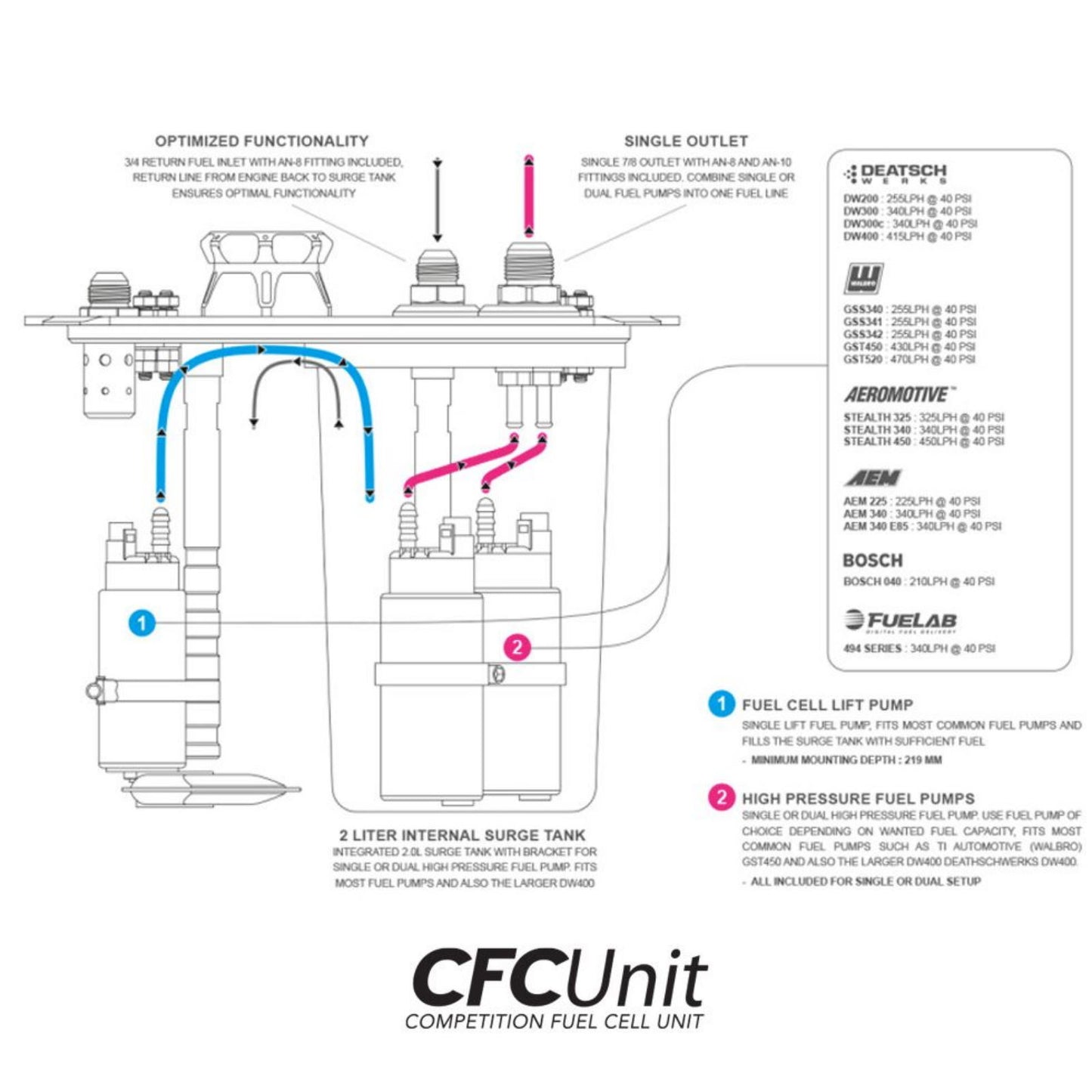

• Approximately 2-liter internal fuel surge tank
• Billet aluminum 6x10" plate with standard 24 bolt pattern
• Minimum mounting depth of 219mm
• All Viton o-rings and ethanol proof seals
• Outlet port : AN-10 (7/8 ORB), available as AN-8, AN-10 and AN-12 line
• Return port : AN-8 (3/4 ORB), available as AN-6, AN-8 and AN-10 line
• Vent port : AN-8 (3/4 ORB), available as AN-6. AN-8 and AN-10 line
• Delivered with 1x AN-8 (3/4 ORB) to AN-6 Male Vent, 1x AN-8 (3/4 ORB) to AN-8 Male, 1x AN-10 (7/8 ORB) to AN-8 Male and 1x AN-10 (7/8 ORB) to AN-10 Male fitting

• Corrosion resistance aluminum 5083 H111
• Welded from two piece aluminum sheets
• Integrated brackets, 4 x 8.5 x 23.5mm (0.33 x 0.92")
• Stainless steel 6x10" 24 bolt pattern flange
• Powder coated externals
• Safe for all types of fuels, including alcoholic fuels

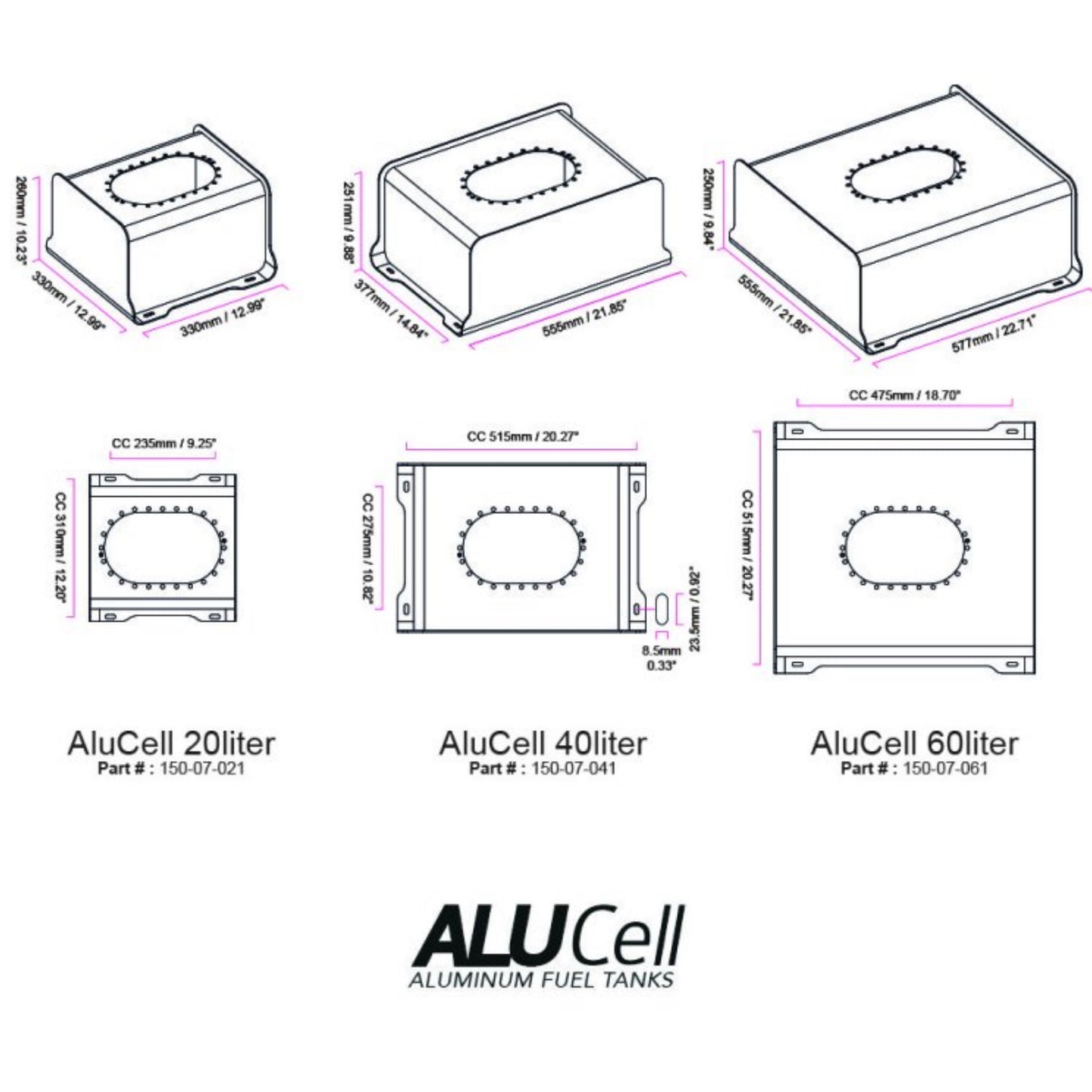

Measurements

• Length: 555 mm (21.85")
• Depth: 377mm (14.84")
• Height: 251mm (9.88")
• Mounting holes: 8.5 x 23.5mm (0.33 x 0.92")

• Length: 577 mm (22.71")
• Depth: 555mm (21.85")
• Height: 250mm (9.84")
• Mounting holes: 8.5 x 23.5mm (0.33 x 0.92")

Included in package

• 1x AluCell Aluminum fuel cell 20-liter / 40-liter / 60-liter
• 1x Nuke Performance CFC Unit - low profile version
• 2x 1/4" BSPP to Male barb 8mm hose fittings
• 1x 1/4" BSPP plug, when using only one high-pressure fuel pump
• 2x 39mm inserts for high-pressure fuel pump bracket
• 1x Viton gasket for 24 bolt pattern fuel cells (safe for alcoholic fuels)
• 1x Low profile filler cap (remote fill neck available as accessory)
• 1x Dual billet fuel pump bracket and adjustable pickup pump mount
• 1x AN-8 (3/4 ORB) to AN-6 Male vent safety valve
• 1x FLS spacer, used for fuel level senders with a not symmetrical bolt pattern
• 24x 1/4-28 ORB x 3/4 bolts with nylon washers

* no fuel pump included
